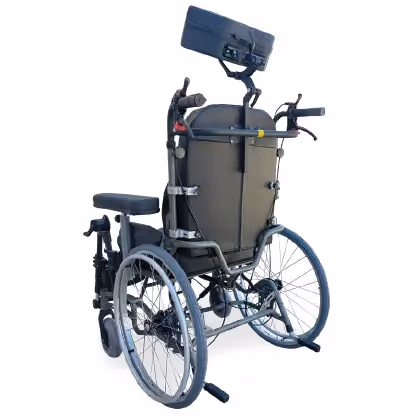

Redgum Onyx Wheelchair
- Seat and backrest are angle adjustable
- Detachable armrests
- Height adjustable armrests
- Elevating, fully adjustable legrests
- Removable height adjustable headrest
- Locking brake with drum hand brake
- Adjustable anti tip caps
- Quick release rear wheels
- Solid tyres
- Pressure reduction padded seat, legs, arms, backrest and headrest support
- Overall length: 1050 – 1090mm (with footrests)
- Overall length: 830 – 870mm (without footrests)
- Overall width: 580 – 730mm
- Overall width: 650 – 700mm (without armrest)
- Overall height 990 – 1060mm (without headrest)
- Overall height: 710 – 780mm (with folded backrest, without armrests)
- Seat width: 450mm and 500mm
- Seat depth: 460 – 520mm
- Seat height: 460 – 530mm (with cushion)
- Backrest height: 550 – 585mm
- Backrest angle: 0˚ – 54˚
- Front Wheels: 8” – 200mm
- Rear Wheels: 24” – 600mm (Self-Propel)
- Rear Wheels: 16” – 400mm (Attendant-Propel)
- Distance between footrest and seat: 400 – 570mm
- Foot plate angle: 80˚ – 100˚
- Angle between seat and footrest: 104˚ – 194˚
- Static stability downhill: 10˚
- Static stability uphill: 15˚
- Static stability sideways: 12˚
- Obstacle climbing: 60mm
- Product Weight: 38kg
- Maximum Weight Loading: 135kg
- Overall length: 1050 – 1090mm (with footrests)
- Overall length: 830 – 870mm (without footrests)
- Overall width: 580 – 730mm
- Overall width: 650 – 700mm (without armrest)
- Overall height 990 – 1060mm (without headrest)
- Overall height: 710 – 780mm (with folded backrest, without armrests)
- Seat width: 450mm and 500mm
- Seat depth: 460 – 520mm
- Seat height: 460 – 530mm (with cushion)
- Backrest height: 550 – 585mm
- Backrest angle: 0˚ – 54˚
- Front Wheels: 8” – 200mm
- Rear Wheels: 24” – 600mm (Self-Propel)
- Rear Wheels: 16” – 400mm (Attendant-Propel)
- Distance between footrest and seat: 400 – 570mm
- Foot plate angle: 80˚ – 100˚
- Angle between seat and footrest: 104˚ – 194˚
- Static stability downhill: 10˚
- Static stability uphill: 15˚
- Static stability sideways: 12˚
- Obstacle climbing: 60mm
- Product Weight: 38kg
- Maximum Weight Loading: 135kg
