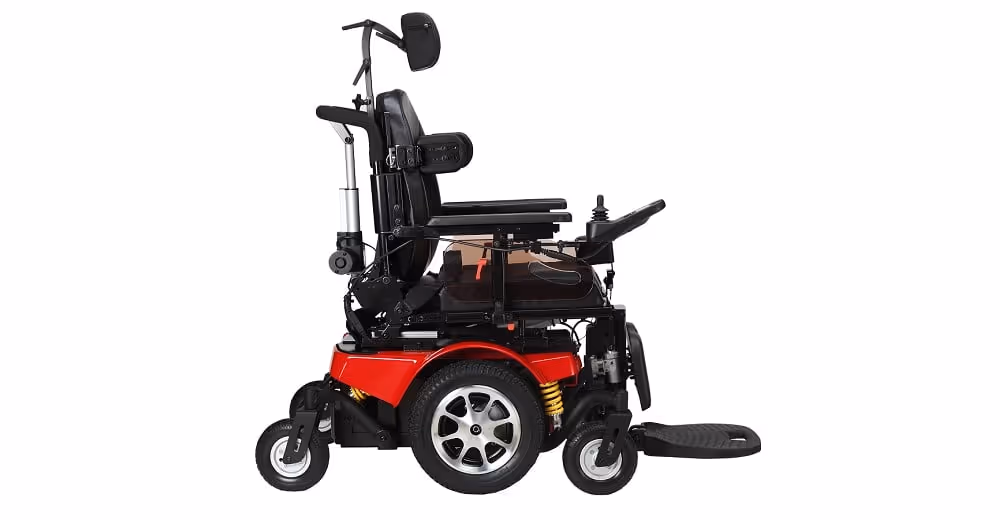

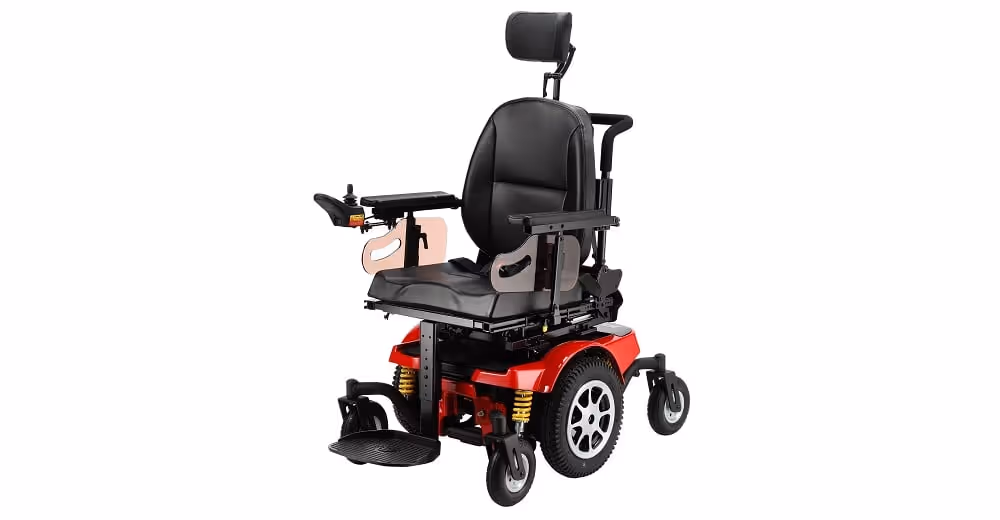

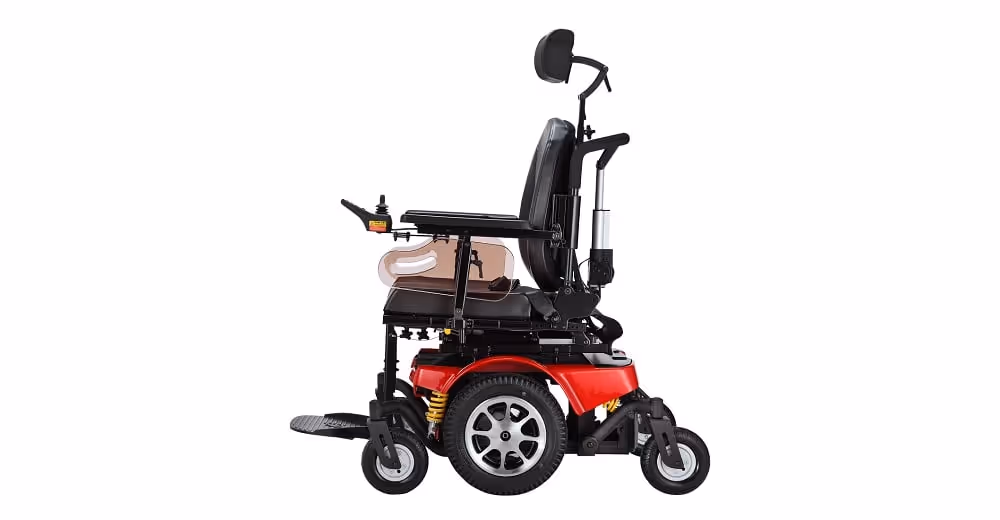

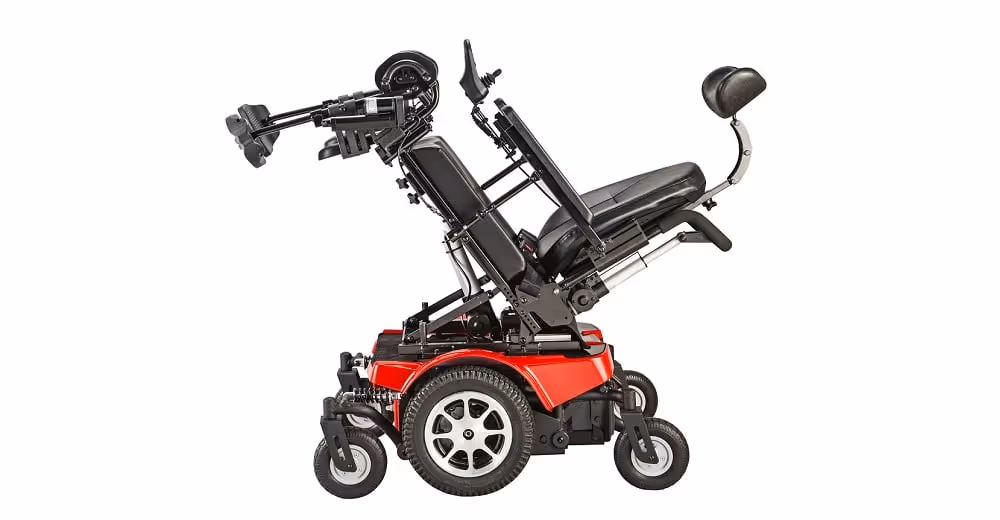

Merits Vector Power Wheelchair

Multi-Function Rehab Power Wheelchair

Center of gravity changes according to sliding seat. (For safety reasons, center gravity of end-user will always stay above the middle wheels)

Mechanical shear reduction device for injury prevention

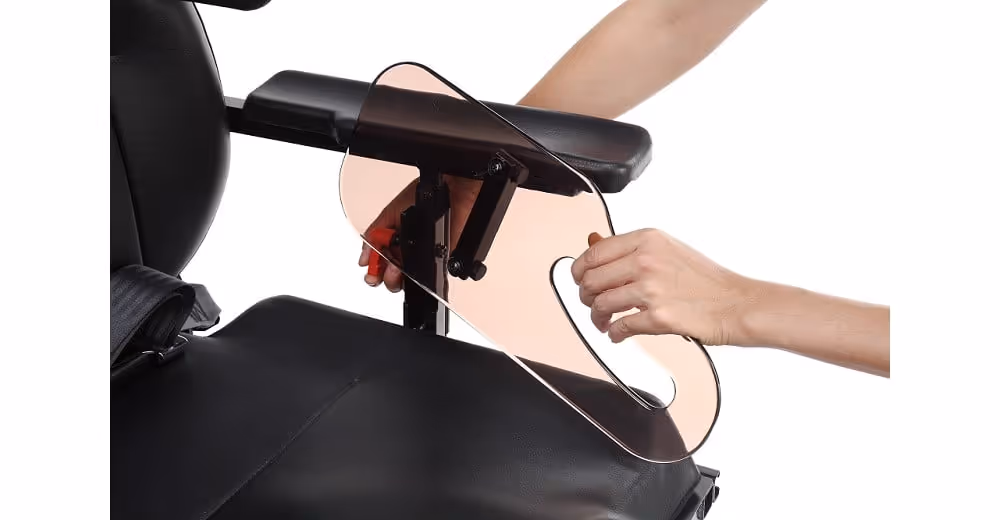

Armrest adjusted automatically when reclined for comfortable seating

Adjustable seat width and seat depth (16″/18″/20″) for customerized fitting of individual user

Dual in-line motors for enhanced efficiency, torque, range and performance

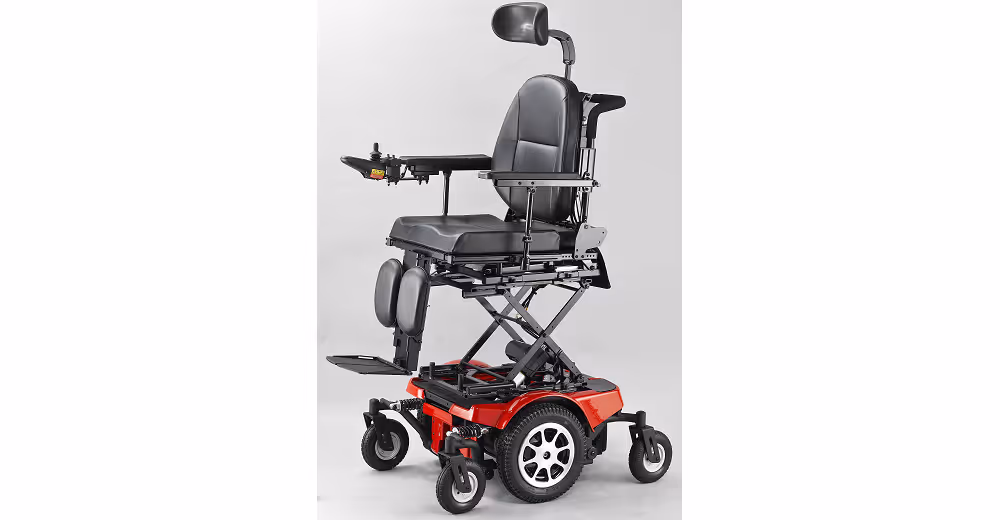

Optional seat elevator and power footplate or elevating legrest

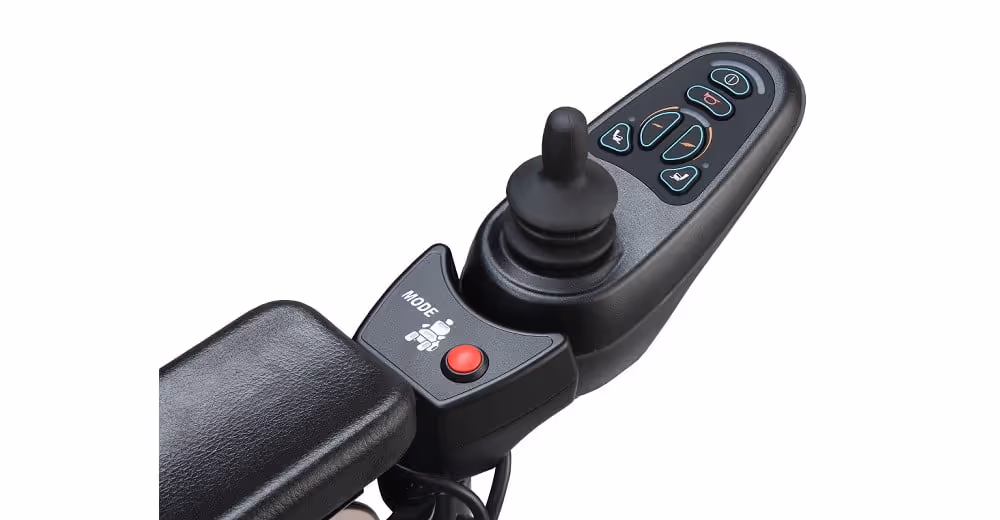

Optional PG R-NET multi-function controller

<h3>Merits Vector Power Wheelchair Features</h3> <div class="grid-container"> <div class="grid-item"> Full front and rear suspension design</div> <div class="grid-item">Power tilt operated in 5°- 55°</div> <div class="grid-item">Power recline adjustment from 90°-150°</div> <div class="grid-item"> Seat elevator travel range: 30cm / 12inch</div> <div class="grid-item"> Adjustable headrest</div> <div class="grid-item">Optional power footplate</div> </div> <table class="table table-hover" border="0" width="99%" cellpadding="0"> <tbody> <tr> <td width="19%">Brand / Manafacturer</td> <td width="81%">merits</td> </tr> <tr> <td>Product Type</td> <td>power-wheelchairs</td> </tr> <tr> <td>Category</td> <td>electric-wheelchair</td> </tr> <tr> <td>Price Range</td> <td>premium-quality</td> </tr> <tr> <td>Size Range</td> <td>largemedium</td> </tr> </tbody> </table>

<h3>Merits Vector Power Wheelchair Specifications</h3><table class="table table-hover" border="0" width="99%" cellpadding="0"><tbody><tr><td width="19%">Weight Capacity</td><td width="81%">182 kg</td></tr><tr><td>Max. Speed</td><td>8 kph</td></tr><tr><td>Range</td><td>38 km</td></tr><tr><td>Turn Radius</td><td>68 cm</td></tr><tr><td>Ground Clearance</td><td>8 cm</td></tr><tr><td>Motor</td><td>DC 24V, 200W(Rating)/ 575W(Max)</td></tr><tr><td>Controller</td><td>PG VR2 60A/ Rnet 60A</td></tr><tr><td>Battery</td><td>22NF/ 12V 62AH x 2pcs</td></tr><tr><td>Charger</td><td>5A off-board</td></tr><tr><td>Gradient</td><td>7.5°</td></tr><tr><td>Front Wheel</td><td>F: 8"/ R: 8"</td></tr><tr><td>Rear Wheel</td><td>14"</td></tr><tr><td>Brake</td><td>intelligent, regenerative, electromagnetic brakes</td></tr><tr><td>Dimentions
Length x Width x height (if available)</td><td>115 cm x 68 cm x 107 cm</td></tr></tbody></table>

Brochure Manual

Features
Specifications
Documents
Documents
Documents

<h3>Merits Vector Power Wheelchair Features</h3> <div class="grid-container"> <div class="grid-item"> Full front and rear suspension design</div> <div class="grid-item">Power tilt operated in 5°- 55°</div> <div class="grid-item">Power recline adjustment from 90°-150°</div> <div class="grid-item"> Seat elevator travel range: 30cm / 12inch</div> <div class="grid-item"> Adjustable headrest</div> <div class="grid-item">Optional power footplate</div> </div> <table class="table table-hover" border="0" width="99%" cellpadding="0"> <tbody> <tr> <td width="19%">Brand / Manafacturer</td> <td width="81%">merits</td> </tr> <tr> <td>Product Type</td> <td>power-wheelchairs</td> </tr> <tr> <td>Category</td> <td>electric-wheelchair</td> </tr> <tr> <td>Price Range</td> <td>premium-quality</td> </tr> <tr> <td>Size Range</td> <td>largemedium</td> </tr> </tbody> </table>

<h3>Merits Vector Power Wheelchair Specifications</h3><table class="table table-hover" border="0" width="99%" cellpadding="0"><tbody><tr><td width="19%">Weight Capacity</td><td width="81%">182 kg</td></tr><tr><td>Max. Speed</td><td>8 kph</td></tr><tr><td>Range</td><td>38 km</td></tr><tr><td>Turn Radius</td><td>68 cm</td></tr><tr><td>Ground Clearance</td><td>8 cm</td></tr><tr><td>Motor</td><td>DC 24V, 200W(Rating)/ 575W(Max)</td></tr><tr><td>Controller</td><td>PG VR2 60A/ Rnet 60A</td></tr><tr><td>Battery</td><td>22NF/ 12V 62AH x 2pcs</td></tr><tr><td>Charger</td><td>5A off-board</td></tr><tr><td>Gradient</td><td>7.5°</td></tr><tr><td>Front Wheel</td><td>F: 8"/ R: 8"</td></tr><tr><td>Rear Wheel</td><td>14"</td></tr><tr><td>Brake</td><td>intelligent, regenerative, electromagnetic brakes</td></tr><tr><td>Dimentions
Length x Width x height (if available)</td><td>115 cm x 68 cm x 107 cm</td></tr></tbody></table>

Brochure Manual
